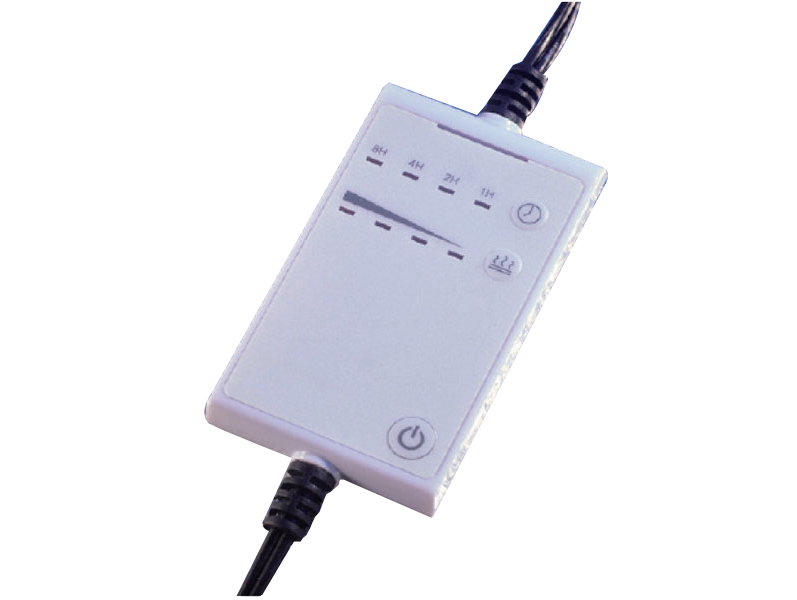

The DTC-S series 4-Phase Temperature and Time Controller uses Pulse Width Modulation (PWM) to control power input and provides four settings of 25%, 50%, 75%, and 100%. The output temperature varies depending on the heater device (power density). Time control can be set to 1, 2, 4, and 8 hours. It is small, lightweight, and easy to control and can be used with various heater products.
Unit of Measure

Basic Specifications

Type

 N/A Wired

Length

 N/A 86 mm3.39 in

Width

 N/A 50 mm1.97 in

Height

 N/A 14 mm0.55 in

Exterior Material

 N/A Acrylonitrile Butadiene Styrene (ABS)

Input Voltage (DC)

 N/A Type A: 12 ~ 24 V

Input Voltage (AC)

 N/A Type B: 100 ~ 120 VType C: 200 ~ 240 V

Output Voltage (DC)

 N/A Type A: 12 ~ 24 V

Output Voltage (AC)

 N/A Type B: 100 ~ 120 VType C: 200 ~ 240 V

Control Method

 N/A On/Off

Frequency

 N/A 60 Hz50 Hz (Available upon request)

Maximum Current (DC)

 N/A ≤8 A

Maximum Current (AC)

 N/A ≤2 A

Operating Temperature

 N/A -20 ~ 55 ºC-4 to 131 ºF

Ambient Humidity

 N/A 0 ~ 80% RH

Setting/Indication Method

 N/A LED display

Temperature (Power) Control

 N/A Phase 1 to 4 (25%, 50%, 75%, 100% power inputs)

Time Control

 N/A Phase 1 to 4 (1, 2, 4, 8 hours)

Features

N/A

  • Easy to operate time and power settings.
  • 4-Phase power settings (25%, 50%, 75%, and 100% power input).
  • Four Time settings (1, 2, 4, 8 hours).
  • Automatically memorizes previous setting.
  • Suitable for both AC (110 V/220 V) and DC (12 ~ 24 V).
  • Lightweight and sleek design.
