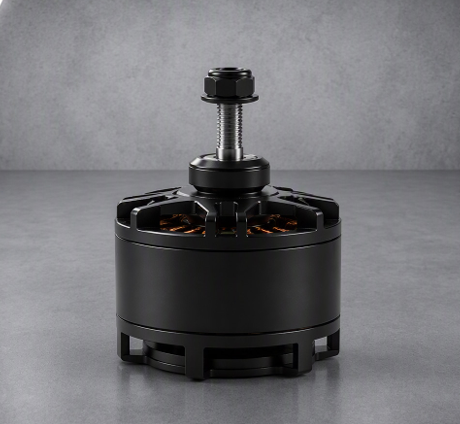

The EV4215-710 is a 710 KV, 4215-class propulsion motor designed for tactical UAVs, ISR platforms, high-speed aircraft, and rapid-response systems requiring maximum aircraft responsiveness and high rotational speed capability.
Unit of Measure

Specifications

Stator Size

 N/A 4215

KV

 N/A 710 KV

Dimensions

 N/A 49 x 65 mm (1.93 x 2.56 in)

Configuration

 N/A 12N14P

Shaft Diameter

 N/A 6 mm

Weight

 N/A 175 g

Cable Length

 N/A 750 mm

Cells

 N/A 6S

Series

 N/A EV4200

Speed (up to)

 N/A 17,740 rpm

Idle Current (20V)

 N/A 3.5 A

Maximum Power

 N/A 1,900 Watts

Peak Current

 N/A 90 A

Resistance

 N/A 30 mOhm

Lead Wires (AWG)

 N/A 14 AWG / 2.5 mm²

Propeller Performance Data

N/A

Tested Propeller Cell Configuration Max Thrust Electrical Power Current Speed Efficiency Datasheet
10 × 4.5 × 2 6S 3,200 g 892.9 W 38.24 A 14,314 RPM 3.58 g/W EV4215-710 – 10×4.5×2 – 6S
10 × 5 × 3 6S 3,615 g 1,101.9 W 47.97 A 13,543 RPM 3.28 g/W EV4215-710 – 10×5×3 – 6S
11 × 7.5 × 3 6S 4,308 g 1,393.6 W 63.06 A 12,086 RPM 3.09 g/W EV4215-710 – 11×7.5×3 – 6S

* For detailed specifications and motor performance curves, please refer to the complete product specification sheet.

Propeller Reference Guide

N/A

EV4200 Tested Propeller Reference Table
Propeller Reference Diameter (in) Pitch (in) Number of Blades Used With Models
10 × 4.5 × 2 10 in 4.5 in 2 blades EV4215-340, EV4215-380, EV4215-520, EV4215-710
10 × 5 × 3 10 in 5 in 3 blades EV4215-340, EV4215-380, EV4215-520, EV4215-710
11 × 7.5 × 3 11 in 7.5 in 3 blades EV4215-340, EV4215-380, EV4215-520, EV4215-710
13 × 8 × 3 13 in 8 in 3 blades EV4215-340, EV4215-380
13 × 10 × 3 13 in 10 in 3 blades EV4215-340, EV4215-380
15 × 7 × 3 15 in 7 in 3 blades EV4215-340, EV4215-380, EV4215-520

NOTE: Propeller format is shown as diameter × pitch × blade count. For example, 15 × 7 × 3 indicates a 15-inch diameter, 7-inch pitch, three-blade propeller.

Detailed Propeller Performance Reference

N/A

EV4215-710
Tested Propeller Cell Configuration Max Thrust Electrical Power Current Speed Efficiency
10 × 4.5 × 2 6S 3,200 g 892.9 W 38.24 A 14,314 RPM 3.58 g/W
10 × 5 × 3 6S 3,615 g 1,101.9 W 47.97 A 13,543 RPM 3.28 g/W
11 × 7.5 × 3 6S 4,308 g 1,393.6 W 63.06 A 12,086 RPM 3.09 g/W

NOTE: Performance data depends on battery voltage, ESC settings, airflow, mounting conditions, propeller selection, and aircraft design. Use these tables for engineering screening; validate final selections with application-specific testing.

Best-Fit Application

N/A

Model Number Best-Fit Application
EV4215-340 VTOL & Survey
EV4215-380 Industrial Inspection
EV4215-520 Payload & Agriculture
EV4215-710 Tactical & High-Speed

Features & Specifications

N/A Features & Specifications

  • 340 KV, 380 KV, 520 KV, and 710 KV motor platforms
  • Common 4215-class motor architecture
  • Motor dimensions: 49 × 65 mm
  • 12N14P configuration
  • 6 mm shaft diameter
  • 175 g motor weight
  • 750 mm lead-wire length, 14 AWG (2.5 mm²) lead wires
  • Published 6S and selected 8S performance configurations
  • Published thrust, power, current, RPM, and efficiency data
  • OEM customization options
  • Defense program support

Applications

N/A Features & Specifications

  • Tactical UAVs
  • High-speed multirotors
  • ISR platforms
  • Fast-response aircraft
  • Special-purpose defense and security systems
