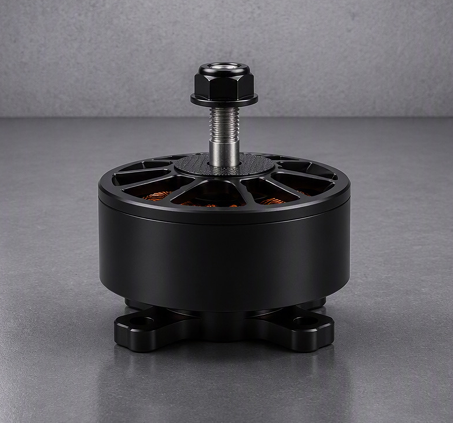

The EV3115-700 is a 700 KV, 3115-class propulsion motor designed for payload-carrying UAVs, commercial multirotors, and OEM development programs requiring maximum thrust capability and expanded payload margin.
Unit of Measure

Specifications

Stator Size

 N/A 3115

KV

 N/A 700 KV

Dimensions

 N/A 37 x 47 mm (1.46 x 1.85 in)

Configuration

 N/A 12N14P

Shaft Diameter

 N/A 5 mm

Weight

 N/A 120 g

Cable Length

 N/A 300 mm

Cells

 N/A 4S-6S, selected 8S testing

Series

 N/A EV3100

Speed (up to)

 N/A 22,000 rpm

Idle Current (20V)

 N/A 1.1 A

Maximum Power

 N/A 1,300 Watts

Peak Current

 N/A 55 A

Resistance

 N/A 56 mOhm

Lead Wires (AWG)

 N/A 16 AWG / 1.5 mm²

Propeller Performance Data

N/A

Tested Propeller Cell Configuration Max Thrust Electrical Power Current Speed Efficiency Datasheet
10.5 × 5 × 3 4S 1,939 g 400.7 W 26.98 A 8,914 RPM 4.84 g/W EV3115-700 – 10.5×5×3 – 4S
11 × 4.5 × 3 4S 1,973 g 390.5 W 25.86 A 9,257 RPM 5.05 g/W EV3115-700 – 11×4.5×3 – 4S
8 × 4 × 3 6S 2,160 g 590.6 W 24.68 A 15,771 RPM 3.66 g/W EV3115-700 – 8×4×3 – 6S
9 × 4 × 3 6S 2,480 g 669.8 W 28.20 A 15,171 RPM 3.70 g/W EV3115-700 – 9×4×3 – 6S
10 × 5 × 3 6S 3,594 g 1,149.5 W 50.24 A 12,514 RPM 3.13 g/W EV3115-700 – 10×5×3 – 6S
10.5 × 5 × 3 6S 3,758 g 1,163.5 W 50.92 A 12,343 RPM 3.23 g/W EV3115-700 – 10.5×5×3 – 6S
7.1 × 4 × 3 8S 2,526 g 837.4 W 26.67 A 21,086 RPM 3.02 g/W EV3115-700 – 7.1×4×3 – 8S
8 × 4 × 3 8S 3,445 g 1,134.1 W 37.79 A 19,629 RPM 3.04 g/W EV3115-700 – 8×4×3 – 8S
9 × 4 × 3 8S 3,853 g 1,326.7 W 43.37 A 18,600 RPM 2.90 g/W EV3115-700 – 9×4×3 – 8S

* For detailed specifications and motor performance curves, please refer to the complete product specification sheet.

Propeller Reference Guide

N/A

EV3100 Tested Propeller Reference Table
Propeller Reference Diameter (in) Pitch (in) Number of Blades Used With Models
6 × 2.5 × 3 6 in 2.5 in 3 blades EV3115-640
7 × 4 × 3 7 in 4 in 3 blades EV3110-900, EV3115-640
7.1 × 4 × 3 7.1 in 4 in 3 blades EV3110-900, EV3115-640, EV3115-700, EV3115-900
7.5 × 4 × 2 7.5 in 4 in 2 blades EV3110-900
8 × 4 × 3 8 in 4 in 3 blades EV3110-900, EV3115-640, EV3115-700, EV3115-900
8 × 8 × 2 8 in 8 in 2 blades EV3115-900
9 × 4 × 3 9 in 4 in 3 blades EV3110-900, EV3115-640, EV3115-700, EV3115-900
10 × 4.5 × 2 10 in 4.5 in 2 blades EV3110-900
10 × 5 × 3 10 in 5 in 3 blades EV3110-900, EV3115-640, EV3115-700, EV3115-900
10.5 × 5 × 3 10.5 in 5 in 3 blades EV3115-640, EV3115-700, EV3115-900
11 × 4.5 × 3 11 in 4.5 in 3 blades EV3115-640, EV3115-700, EV3115-900

NOTE: Propeller format is shown as diameter × pitch × blade count. For example, 11 × 4.5 × 3 indicates a 11-inch diameter, 4.5-inch pitch, three-blade propeller.

Detailed Propeller Performance Reference

N/A

EV3115-700
Tested Propeller Cell Configuration Max Thrust Electrical Power Current Speed Efficiency
10.5 × 5 × 3 4S 1,939 g 400.7 W 26.98 A 8,914 RPM 4.84 g/W
11 × 4.5 × 3 4S 1,973 g 390.5 W 25.86 A 9,257 RPM 5.05 g/W
8 × 4 × 3 6S 2,160 g 590.6 W 24.68 A 15,771 RPM 3.66 g/W
9 × 4 × 3 6S 2,480 g 669.8 W 28.20 A 15,171 RPM 3.70 g/W
10 × 5 × 3 6S 3,594 g 1,149.5 W 50.24 A 12,514 RPM 3.13 g/W
10.5 × 5 × 3 6S 3,758 g 1,163.5 W 50.92 A 12,343 RPM 3.23 g/W
7.1 × 4 × 3 8S 2,526 g 837.4 W 26.67 A 21,086 RPM 3.02 g/W
8 × 4 × 3 8S 3,445 g 1,134.1 W 37.79 A 19,629 RPM 3.04 g/W
9 × 4 × 3 8S 3,853 g 1,326.7 W 43.37 A 18,600 RPM 2.90 g/W

NOTE: Performance data depends on battery voltage, ESC settings, airflow, mounting conditions, propeller selection, and aircraft design. Use these tables for engineering screening; validate final selections with application-specific testing.

Best-Fit Application

N/A

Model Number Best-Fit Application
EV3110-900 Commercial Multirotor / Mapping UAV
EV3115-640 Lower-KV / Payload UAV
EV3115-700 High-Thrust / Payload UAV
EV3115-900 High-Speed / High-Output UAV

Features & Specifications

N/A Features & Specifications

  • 640 KV, 700 KV, and 900 KV motor platforms
  • 3110- and 3115-class motor architectures
  • 37 mm frame-diameter platform
  • 12N14P configuration
  • 5 mm shaft diameter
  • Published 4S, 6S, and selected 8S performance configurations
  • Published thrust, power, current, RPM, and efficiency data
  • OEM customization options
  • Defense program support available

Applications

N/A Features & Specifications

  • Payload-carrying UAVs
  • Commercial multirotors
  • High-thrust development platforms
  • Mapping and inspection aircraft
  • OEM development programs
