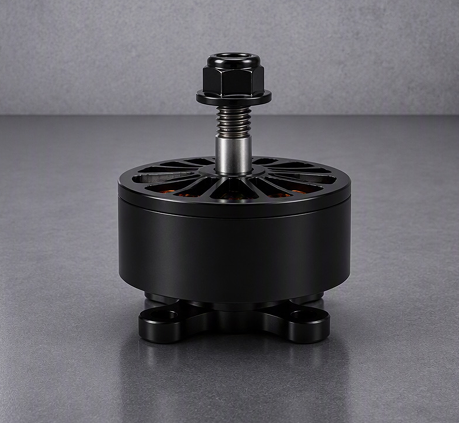

The EV2810-1100 is a compact propulsion solution for multirotors, inspection UAVs, mapping platforms, and OEM development programs requiring balanced weight, thrust, and efficiency performance.
Unit of Measure

Specifications

Stator Size

 N/A 2810

KV

 N/A 1100 KV

Dimensions

 N/A 33.4 x 38 mm (1.31 x 1.5 in)

Configuration

 N/A 12N14P

Shaft Diameter

 N/A 5 mm

Weight

 N/A 70 g

Cable Length

 N/A 250 mm

Cells

 N/A 4S-6S

Series

 N/A EV2800

Speed (up to)

 N/A 30,100 rpm

Idle Current (20V)

 N/A 1.8 A

Maximum Power

 N/A 1,250 Watts

Peak Current

 N/A 50 A

Resistance

 N/A 52 mOhm

Lead Wires (AWG)

 N/A 18 AWG / 1 mm²

Propeller Performance Data

N/A

Tested Propeller Cell Configuration Max Thrust Electrical Power Current Speed Efficiency Datasheet
6 × 2.5 × 3 4S 685 g 170.6 W 10.60 A 17,829 RPM 4.02 g/W EV2810-1100 – 6×2.5×3 – 4S
6 × 3 × 3 4S 719 g 179.6 W 11.21 A 17,571 RPM 4.00 g/W EV2810-1100 – 6×3×3 – 4S
6 × 3.5 × 3 4S 916 g 237.5 W 15.10 A 16,629 RPM 3.85 g/W EV2810-1100 – 6×3.5×3 – 4S
7 × 4 × 3 4S 1,169 g 294.8 W 19.02 A 15,857 RPM 3.97 g/W EV2810-1100 – 7×4×3 – 4S
7.1 × 4 × 3 4S 1,272 g 327.3 W 21.31 A 15,343 RPM 3.89 g/W EV2810-1100 – 7.1×4×3 – 4S
7.5 × 4 × 2 4S 1,155 g 321.6 W 20.91 A 15,249 RPM 3.59 g/W EV2810-1100 – 7.5×4×2 – 4S
8 × 4 × 3 4S 1,561 g 405.3 W 27.46 A 13,629 RPM 3.85 g/W EV2810-1100 – 8×4×3 – 4S
9 × 4 × 3 4S 1,765 g 457.3 W 30.98 A 12,943 RPM 3.86 g/W EV2810-1100 – 9×4×3 – 4S
6 × 2.5 × 3 6S 1,493 g 507.1 W 21.11 A 25,543 RPM 2.94 g/W EV2810-1100 – 6×2.5×3 – 6S
6 × 3 × 3 6S 1,513 g 525.6 W 21.92 A 25,286 RPM 2.88 g/W EV2810-1100 – 6×3×3 – 6S
6 × 3.5 × 3 6S 1,839 g 682.9 W 29.06 A 23,400 RPM 2.69 g/W EV2810-1100 – 6×3.5×3 – 6S
7 × 4 × 3 6S 2,346 g 875.9 W 37.43 A 21,943 RPM 2.68 g/W EV2810-1100 – 7×4×3 – 6S
7.1 × 4 × 3 6S 2,500 g 918.9 W 39.42 A 21,343 RPM 2.72 g/W EV2810-1100 – 7.1×4×3 – 6S
7.5 × 4 × 2 6S 2,139 g 920.1 W 39.78 A 21,257 RPM 2.32 g/W EV2810-1100 – 7.5×4×2 – 6S

* For detailed specifications and motor performance curves, please refer to the complete product specification sheet.

Propeller Reference Guide

N/A

EV2800 Tested Propeller Reference Table
Propeller Reference Diameter (in) Pitch (in) Number of Blades Used With Models
6 × 2.5 × 3 6 in 2.5 in 3 blades EV2810-1100, EV2812-1100
6 × 3 × 3 6 in 3 in 3 blades EV2810-1100, EV2812-1100
6 × 3.5 × 3 6 in 3.5 in 3 blades EV2810-1100, EV2812-1100
7 × 4 × 3 7 in 4 in 3 blades EV2810-1100, EV2812-1100
7.1 × 4 × 3 7.1 in 4 in 3 blades EV2810-1100, EV2812-1100
7.5 × 4 × 2 7.5 in 4 in 2 blades EV2810-1100, EV2812-1100
8 × 4 × 3 8 in 4 in 3 blades EV2810-1100, EV2812-1100
9 × 4 × 3 9 in 4 in 3 blades EV2810-1100, EV2812-1100
10 × 4.5 × 2 10 in 4.5 in 2 blades EV2812-1100

NOTE: Propeller format is shown as diameter × pitch × blade count. For example, 10 × 4.5 × 2 indicates a 10-inch diameter, 4.5-inch pitch, two-blade propeller.

Detailed Propeller Performance Reference

N/A

EV2810-1100
Tested Propeller Cell Configuration Max Thrust Electrical Power Current Speed Efficiency
6 × 2.5 × 3 4S 685 g 170.6 W 10.60 A 17,829 RPM 4.02 g/W
6 × 3 × 3 4S 719 g 179.6 W 11.21 A 17,571 RPM 4.00 g/W
6 × 3.5 × 3 4S 916 g 237.5 W 15.10 A 16,629 RPM 3.85 g/W
7 × 4 × 3 4S 1,169 g 294.8 W 19.02 A 15,857 RPM 3.97 g/W
7.1 × 4 × 3 4S 1,272 g 327.3 W 21.31 A 15,343 RPM 3.89 g/W
7.5 × 4 × 2 4S 1,155 g 321.6 W 20.91 A 15,249 RPM 3.59 g/W
8 × 4 × 3 4S 1,561 g 405.3 W 27.46 A 13,629 RPM 3.85 g/W
9 × 4 × 3 4S 1,765 g 457.3 W 30.98 A 12,943 RPM 3.86 g/W
6 × 2.5 × 3 6S 1,493 g 507.1 W 21.11 A 25,543 RPM 2.94 g/W
6 × 3 × 3 6S 1,513 g 525.6 W 21.92 A 25,286 RPM 2.88 g/W
6 × 3.5 × 3 6S 1,839 g 682.9 W 29.06 A 23,400 RPM 2.69 g/W
7 × 4 × 3 6S 2,346 g 875.9 W 37.43 A 21,943 RPM 2.68 g/W
7.1 × 4 × 3 6S 2,500 g 918.9 W 39.42 A 21,343 RPM 2.72 g/W
7.5 × 4 × 2 6S 2,139 g 920.1 W 39.78 A 21,257 RPM 2.32 g/W

NOTE: Performance data depends on battery voltage, ESC settings, airflow, mounting conditions, propeller selection, and aircraft design. Use these tables for engineering screening; validate final selections with application-specific testing.

Best-Fit Application

N/A

Model Number Best-Fit Application
EV2810-1100 Compact Multirotor / Inspection UAV
EV2812-1100 Higher-Output UAV

Features & Specifications

N/A Features & Specifications

  • 1100 KV, 2810 and 2812-class motor platforms
  • Compact 33.4 mm frame diameter architecture
  • 12N14P configuration
  • 5 mm shaft diameter
  • 4S–6S battery compatibility
  • Up to 1,375 W maximum power capability
  • Published thrust, power, current, RPM, and efficiency data
  • OEM customization and application support available
  • Defense-compliant sourcing and program support

Applications

N/A Features & Specifications

  • Compact multirotors
  • Inspection UAVs
  • Mapping & survey platforms
  • Research & development platforms
  • OEM development programs
