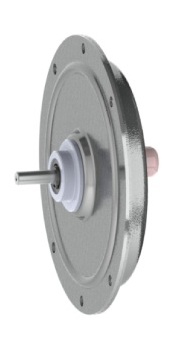

  • Cost Effective General Purpose Design
  • 9cm Armature
  • Ironless Ultra Flat Construction
  • Zero Cogging - Ultra Low Velocity Ripple
  • Brushed DC Motor incorporating Ferrite Magnet Technology
  • Custom Shaft & Housing Configurations Available
  • Brake, Encoder & Tacho Options
  • Available as Motor Kit for Ultimate Integration
Unit of Measure

Peak Torque

 N/A 100 N·cm141.6 oz·in

Rated Speed

 N/A 3705 rpm

Rated Continuous Torque @ 25°C

 N/A 11 N·cm15.58 oz·in

Rated Power Output

 N/A 38.7 Watts

Maximum Recommended Speed

 N/A 6000 rpm

Continuous Stall Torque

 N/A 5.625 N·cm7.966 oz·in

Cogging Torque

 N/A 0 N·cm0 oz·in

Rated Terminal Voltage

 N/A 9 V

Rated Continuous Current

 N/A 11.7 A

Peak Current

 N/A 96.4 A

Continuous Stall Current

 N/A 6.4 A

Terminal Resistance ± 10%

 N/A 0.42 Ohm

Armature Resistance ± 10%

 N/A 0.175 Ohm

Back EMF Constant ± 5%

 N/A 1.1 V/kRPM

Torque Constant ± 5%

 N/A 1.05 N·m/A1.487 oz·in/A

Viscous Damping Constant

 N/A 0.3 N·cm/KRPM0.43 oz·in/KRPM

Armature Inductance

 N/A <0.03 µH

Temperature Coefficient of KE

 N/A -0.19 %/°C

Number of Commutation Bars

 N/A 117

Moment of Inertia

 N/A 0.39 kg/cm²0.0055 oz·in·sec²

Average Friction Torque

 N/A 1.2 N·cm1.7 oz·in

Permitted Radial Load

 N/A 2 kg4.41 lb

Permitted Axial Load

 N/A 1 kg2.21 lb

Diameter

 N/A 4.724 in120 mm

Length

 N/A 1.024 in26 mm

Weight

 N/A 0.5 kg1.2 lb

Mechanical Time Constant

 N/A 117.3 ms

Electrical Time Constant

 N/A <0.24 ms

Thermal Resistance at Rated

 N/A 2 ºC/W

Thermal Resistance at Stall

 N/A 2.52 ºC/W

N/A Servo mechanisms, motion control, industrial robots, CNC machining, printing machinery, logistics solutions, medical mobility, medical scanners, flight simulators, marine autopilots and high ambient temperature ventilation.

N/A Industrial automation, automotive, medical, life sciences, aerospace, printing, logistics, instrumentation, test and measurement, oil & gas and offshore marine.

N/A

  • Encoders
  • Timing pulleys
  • Long lead wires
  • Tri-rated cable
  • Open/Kit option
  • Customized shafts
  • EMC suppression
  • Conectors
  • Rated for operation in 150°C ambient
  • Mounting customization
