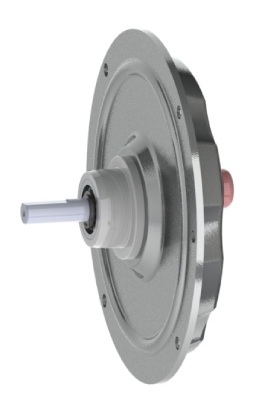

  • Cost Effective General Purpose Design
  • 12cm Armature
  • Ironless Ultra Flat Construction
  • Zero Cogging - Ultra Low Velocity Ripple
  • Brushed DC Motor incorporating Ferrite Magnet Technology
  • LR - High Speed Variant
  • Custom Shaft & Housing Configurations Available
  • Brake, Encoder & Tacho Options
  • Available as Motor Kit for Ultimate Integration
Unit of Measure

Peak Torque

 N/A 278 N·cm393 oz·in

Rated Speed

 N/A 3050 rpm

Rated Continuous Torque @ 25°C

 N/A 23.5 N·cm33.28 oz·in

Rated Power Output

 N/A 64 Watts

Maximum Recommended Speed

 N/A 6000 rpm

Continuous Stall Torque

 N/A 22 N·cm31 oz·in

Cogging Torque

 N/A 0 N·cm0 oz·in

Rated Terminal Voltage

 N/A 12 V

Rated Continuous Current

 N/A 10.8 A

Peak Current

 N/A 136 A

Continuous Stall Current

 N/A 6 A

Terminal Resistance ± 10%

 N/A 0.45 Ohm

Armature Resistance ± 10%

 N/A 0.21 Ohm

Back EMF Constant ± 5%

 N/A 2.3 V/kRPM

Torque Constant ± 5%

 N/A 2.34 N·m/A3.32 oz·in/A

Viscous Damping Constant

 N/A 0.56 N·cm/KRPM0.6 oz·in/KRPM

Armature Inductance

 N/A <0.03 µH

Temperature Coefficient of KE

 N/A -0.19 %/°C

Number of Commutation Bars

 N/A 141

Moment of Inertia

 N/A 1.624 kg/cm²0.023 oz·in·sec²

Average Friction Torque

 N/A 2 N·cm3.5 oz·in

Permitted Radial Load

 N/A 3.5 kg7.72 lb

Permitted Axial Load

 N/A 3.5 kg7.72 lb

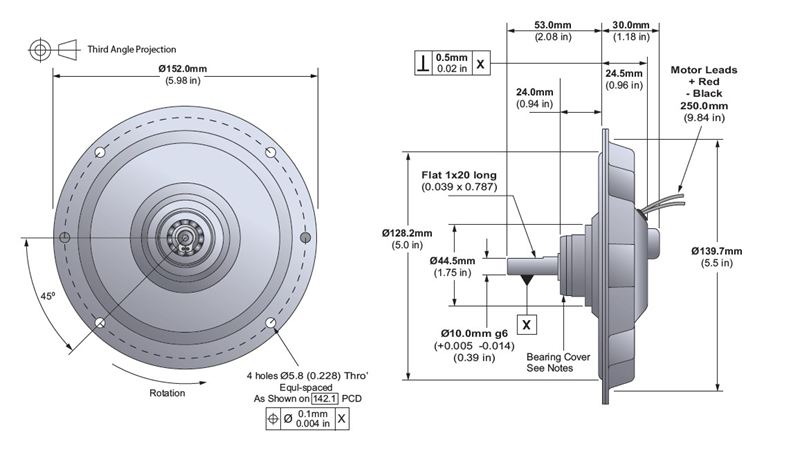

Diameter

 N/A 5.984 in152 mm

Length

 N/A 1.181 in30 mm

Weight

 N/A 1 kg2.2 lb

Mechanical Time Constant

 N/A 50.7 ms

Electrical Time Constant

 N/A <0.12 ms

Thermal Resistance at Rated

 N/A 1.7 ºC/W

Thermal Resistance at Stall

 N/A 0.03 ºC/W

N/A Servo mechanisms, motion control, industrial robots, CNC machining, printing machinery, logistics solutions, medical mobility, medical scanners, flight simulators, marine autopilots and high ambient temperature ventilation.

N/A Industrial automation, automotive, medical, life sciences, aerospace, printing, logistics, instrumentation, test and measurement, oil & gas and offshore marine.

N/A

  • Encoders
  • Timing pulleys
  • Long lead wires
  • Tri-rated cable
  • Open/Kit option
  • Customized shafts
  • EMC suppression
  • Conectors
  • Rated for operation in 150°C ambient
  • Mounting customization
