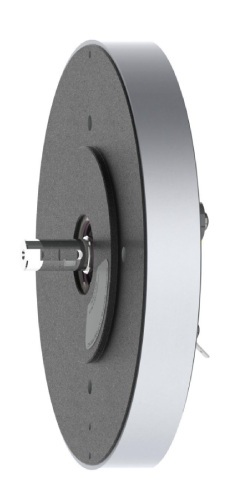

  • High Precision Slim Series Printed Armature Servo Motor
  • 16cm Armature
  • Ironless Ultra Flat Construction
  • Zero Cogging - Ultra Low Velocity Ripple
  • Brushed DC Motor incorporating Neodymium Rare-Earth Magnet Technology
  • Custom Shaft & Housing Configurations Available
  • Gearbox, Brake, Encoder & Tachometer Options
Unit of Measure

Peak Torque

 N/A 2550 N·cm3611 oz·in

Rated Speed

 N/A 3000 rpm

Rated Continuous Torque @ 25°C

 N/A 255 N·cm361 oz·in

Rated Power Output

 N/A 800 Watts

Maximum Recommended Speed

 N/A 6000 rpm

Continuous Stall Torque

 N/A 225 N·cm318.6 oz·in

Cogging Torque

 N/A 0 N·cm0 oz·in

Rated Terminal Voltage

 N/A 99.4 V

Rated Continuous Current

 N/A 9.4 A

Peak Current

 N/A 89.2 A

Continuous Stall Current

 N/A 8 A

Terminal Resistance ± 10%

 N/A 1 Ohm

Armature Resistance ± 10%

 N/A 0.74 Ohm

Back EMF Constant ± 5%

 N/A 30 V/kRPM

Torque Constant ± 5%

 N/A 28.65 N·m/A40.57 oz·in/A

Viscous Damping Constant

 N/A 3.5 N·cm/KRPM4.96 oz·in/KRPM

Armature Inductance

 N/A <100 µH

Temperature Coefficient of KE

 N/A -0.02 %/°C

Number of Commutation Bars

 N/A 165

Moment of Inertia

 N/A 5.93 kg/cm²0.084 oz·in·sec²

Average Friction Torque

 N/A 4.3 N·cm6.09 oz·in

Permitted Radial Load

 N/A 14.28 kg31.47 lb

Permitted Axial Load

 N/A 10.7 kg23.6 lb

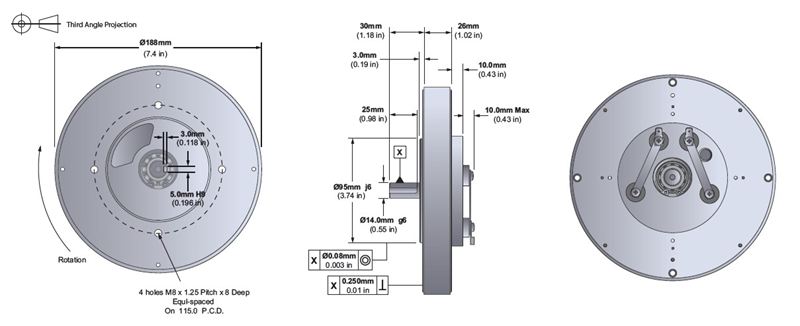

Diameter

 N/A 188 in7.402 mm

Length

 N/A 26 in1.024 mm

Weight

 N/A 4.5 kg9.92 lb

Mechanical Time Constant

 N/A 5.4 ms

Electrical Time Constant

 N/A <0.10 ms

Thermal Resistance at Rated

 N/A 0.9 ºC/W

Thermal Resistance at Stall

 N/A 1.5 ºC/W

N/A Servo mechanisms, motion control, industrial robots, CNC machining, printing machinery, logistics solutions, medical mobility, medical scanners, flight simulators, marine autopilots and high ambient temperature ventilation.

N/A Industrial automation, automotive, medical, life sciences, aerospace, printing, logistics, instrumentation, test and measurement, oil & gas and offshore marine.

N/A

  • Encoders
  • Timing pulleys
  • Long leads
  • Tri-rated cable
  • Customized shafts
  • EMC suppression
  • Connectors
  • US mounting customization
