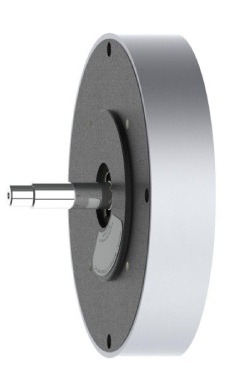

  • High Precision Slim Series Printed Armature Servo Motor
  • 12cm Armature
  • Ironless Ultra Flat Construction
  • Zero Cogging - Ultra Low Velocity Ripple
  • Brushed DC Motor incorporating Neodymium Rare-Earth Magnet Technology
  • Custom Shaft & Housing Configurations Available
  • Gearbox, Brake, Encoder & Tachometer Options
Unit of Measure

Peak Torque

 N/A 1162 N·cm1645 oz·in

Rated Speed

 N/A 3000 rpm

Rated Continuous Torque @ 25°C

 N/A 110 N·cm155 oz·in

Rated Power Output

 N/A 344 Watts

Maximum Recommended Speed

 N/A 6000 rpm

Continuous Stall Torque

 N/A 109 N·cm154 oz·in

Cogging Torque

 N/A 0 N·cm0 oz·in

Rated Terminal Voltage

 N/A 49 V

Rated Continuous Current

 N/A 9.2 A

Peak Current

 N/A 92 A

Continuous Stall Current

 N/A 8.9 A

Terminal Resistance ± 10%

 N/A 0.75 Ohm

Armature Resistance ± 10%

 N/A 0.61 Ohm

Back EMF Constant ± 5%

 N/A 14.1 V/kRPM

Torque Constant ± 5%

 N/A 13.5 N·m/A19.1 oz·in/A

Viscous Damping Constant

 N/A 1.8 N·cm/KRPM2.56 oz·in/KRPM

Armature Inductance

 N/A <100 µH

Temperature Coefficient of KE

 N/A -0.09 %/°C

Number of Commutation Bars

 N/A 141

Moment of Inertia

 N/A 1.342 kg/cm²0.019 oz·in·sec²

Average Friction Torque

 N/A 2.8 N·cm3.97 oz·in

Permitted Radial Load

 N/A 14.28 kg31.47 lb

Permitted Axial Load

 N/A 10.7 kg23.6 lb

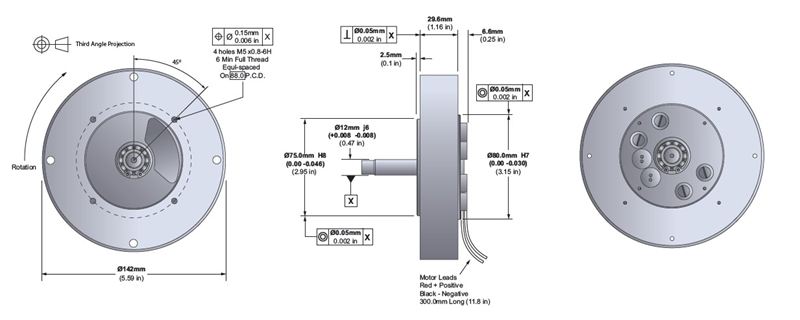

Diameter

 N/A 140 in5.5 mm

Length

 N/A 25.8 in1.016 mm

Weight

 N/A 2.8 kg6.2 lb

Mechanical Time Constant

 N/A 4.5 ms

Electrical Time Constant

 N/A <0.07 ms

Thermal Resistance at Rated

 N/A 1.3 ºC/W

Thermal Resistance at Stall

 N/A 1.9 ºC/W

N/A Servo mechanisms, motion control, industrial robots, CNC machining, printing machinery, logistics solutions, medical mobility, medical scanners, flight simulators, marine autopilots and high ambient temperature ventilation.

N/A Industrial automation, automotive, medical, life sciences, aerospace, printing, logistics, instrumentation, test and measurement, oil & gas and offshore marine.

N/A

  • Encoders
  • Timing pulleys
  • Long leads
  • Tri-rated cable
  • Customized shafts
  • EMC suppression
  • Connectors
  • US mounting customization
